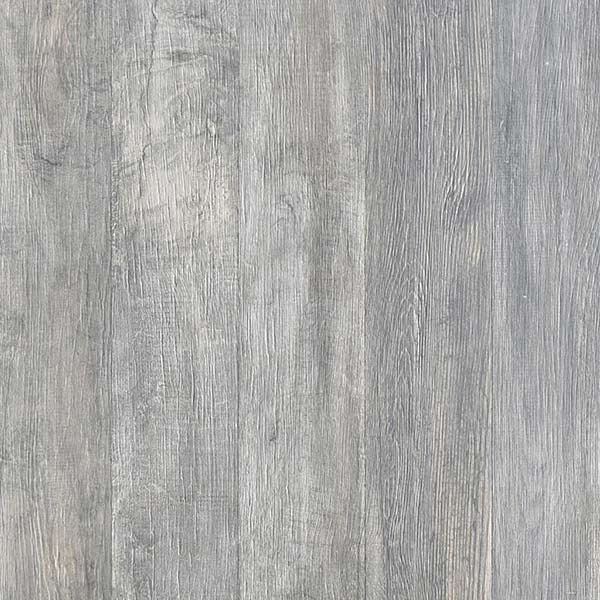

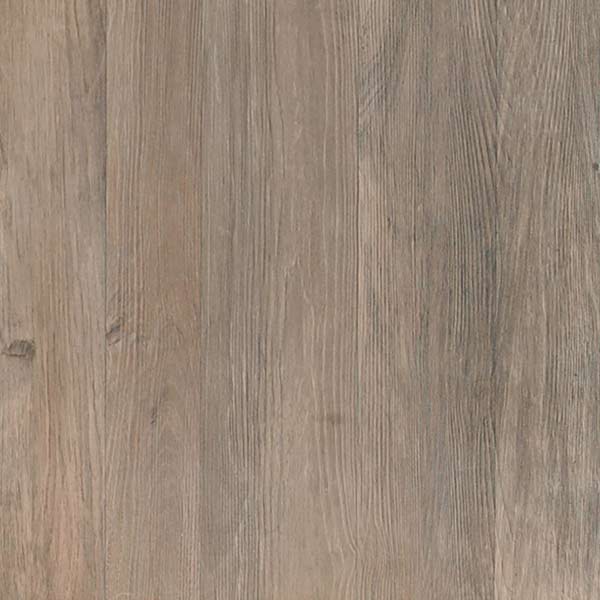

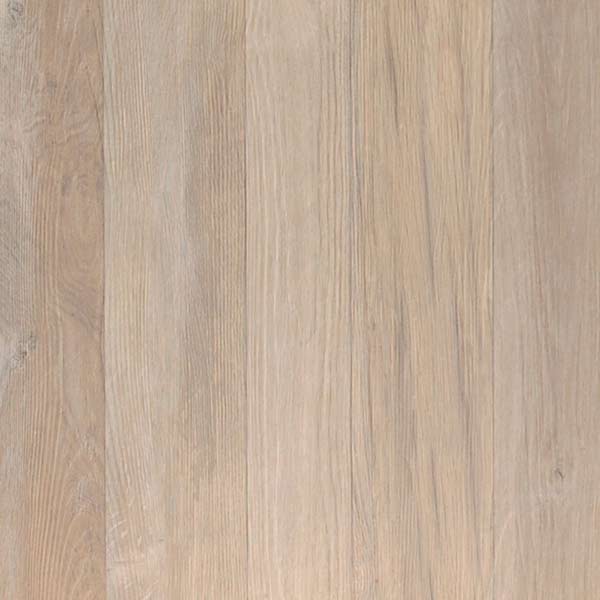

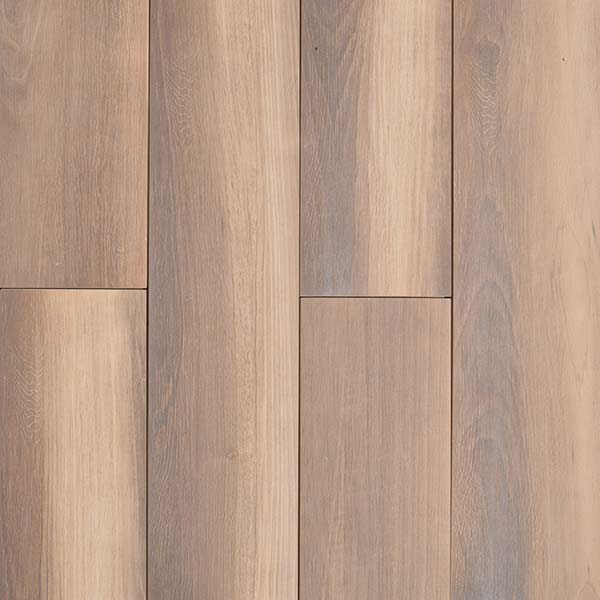

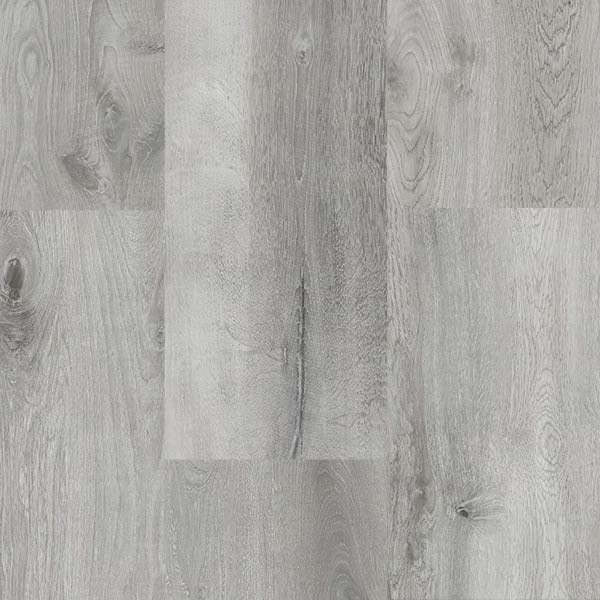

Our wood-look porcelain planks skillfully incorporate all the visual features that make natural wood decking so enchanting. Knots, dark and light streaks, random grain structure, pinholes, variable color and even a weathered appearance can be faithfully reproduced, in an exceptionally wide range of colors from pale bleached grey through dark chocolate browns.
Wood-look porcelain planks avoid all the problems with natural wood decking – no decay, no attacks by insects, no fading, no color change, no staining, no twisting or warping, no scuffing, no splinters and practically zero maintenance.
These planks, most importantly, make a great alternative for rooftop decks in densely populated urban areas, since porcelain is totally fireproof.
Constructing elevated decks with porcelain planks is generally simpler than using natural wood planks. There’s no need for custom designed steel or wood support structures, no nails, screws or clips. Just lay the planks directly over adjustable height pedestals, although with 12” or 16″ wide planks, it is generally preferable to use hollow steel or aluminum beams to support the planks, with the beams supported by adjustable height pedestals. This will reduce the number of pedestals required. See here for further details.

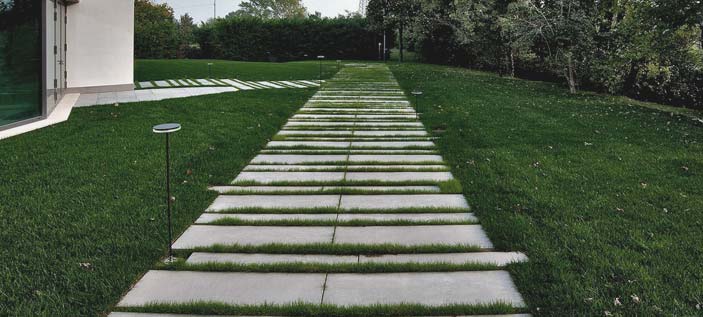

For on-grade applications, planks of any width can be used to create striking landscape designs, particularly when laid in grassed areas. Additionally they can be laid on well compacted sand or gravel beds or mortar set over concrete.
Key Benefits of Porcelain Planks
Sizes & Installation Options
Archatrak currently supplies plank style porcelain decking in four sizes – 16″ x 48″, 12″ x 48″, 8″ x 48″, 12″ x 94″
All four options require far fewer structural components, tools, manpower, site preparation and installation time than building a traditional solid wood roof deck.
|Installation Options / Size||16 x 48"||12" x 48"||8" x 48"||12" x 94"|
|Adjustable Pedestal Supports|
|Rubber Support Pads|
|Pedestal Supported Beams|
|Thinset Mortar over Concrete|
|Compacted Sand Beds|
Resembling panels of 3”- 4” wide wood decking boards joined side by side, our ¾” thick, 16” wide x 48” long wood look planks are designed for installation over pedestals, support pads or a pedestal supported rail system on roof decks, as well as directly on grade over compacted sand or gravel.

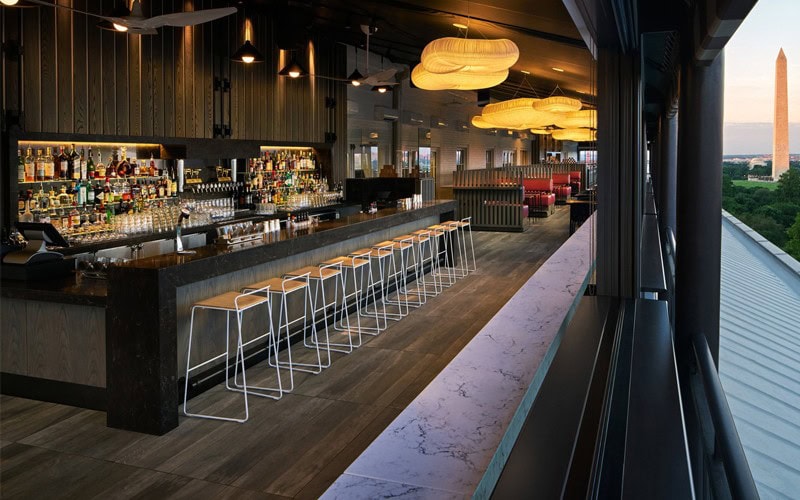

In elevated deck applications, especially high traffic commercial applications such as bars and restaurants, steel protection plates or self-adhesive fiberglass mesh sheets should be be installed on the underside of the pavers for break-through protection.
See our Safety & Security page for more information.
Single planks, ¾” thick, 8” wide x 48” long with up to nine different ‘faces’ or surface variations to ensure a natural/random appearance.’ Available in simulated wood look and modern cement look.
Because of their narrow width, these planks are generally laid on-grade over a well compacted sand base, but for some domestic applications they could be laid over a pedestal supported array of hollow steel beams.

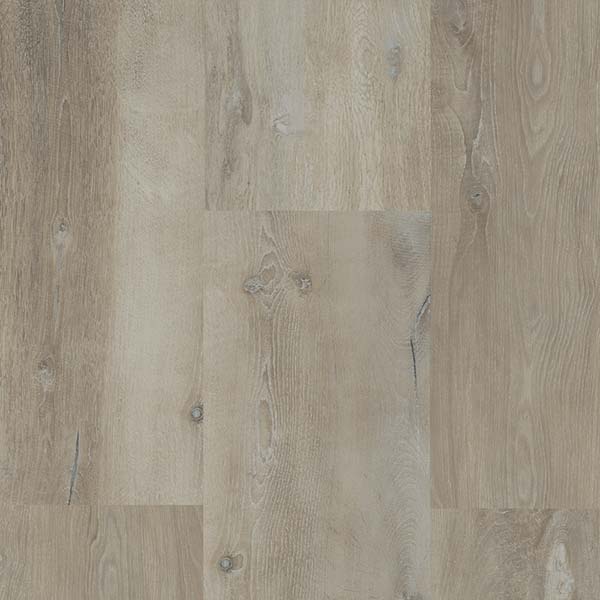

Resembling single boards of natural wood, our ¾” thick, 12” wide x 48” long porcelain deck ‘planks’ are supplied in up to nine different ‘faces’ or surface variations to ensure a natural/random appearance.
Because of their width, these ‘boards’ are generally laid over a pedestal supported array of hollow steel beams, creating a perfectly level elevated deck, but can also be laid as individual planks over a well compacted crushed rock or sand base.
The Archatrak DeckWay porcelain plank system comprises extra long ¾” thick porcelain planks, 11 11/16” wide x 94 ¼” long laid over a parallel array of 8′ long hollow steel beams, which in turn are supported by adjustable height pedestals, spaced at 24” intervals.
The steel beam sub-structure simplifies installation, reduces the number of pedestals and ensures a firm and stable support structure for the completed deck.
The 8’ long porcelain planks are simply laid over the beams, each plank resting on rubber faced support heads with inbuilt spacer tabs, which are slid along the beams to precisely position the planks.
The weight of the planks and their tight spacing against the spacer tabs, is sufficient to prevent any movement of the planks without requiring any additional fixing devices.
Because of their length, DeckWay planks are designed primarily for commercial applications, providing a low maintenance alternative to traditional wood planks.
