‘StreetDeck’ Components

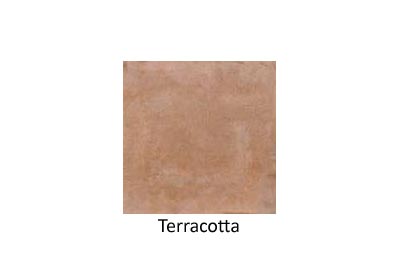

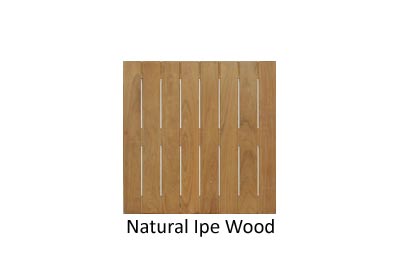

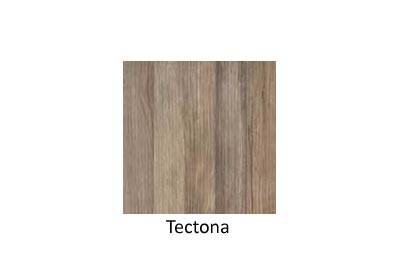

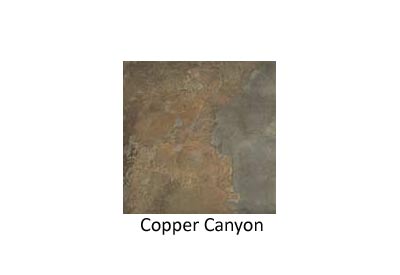

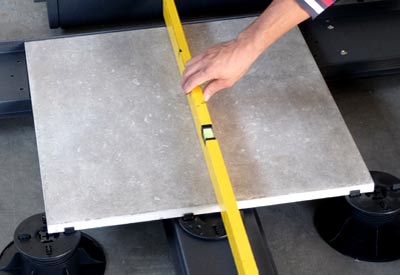

The basic StreetDeck structure comprises a galvanized steel perimeter and cross beams enclosing a deck surface of modular porcelain pavers or wood tiles. The structure and pavers are elevated on adjustable height pedestals which enable a level deck to be constructed irrespective of the slope of the roadway or underlying surface.

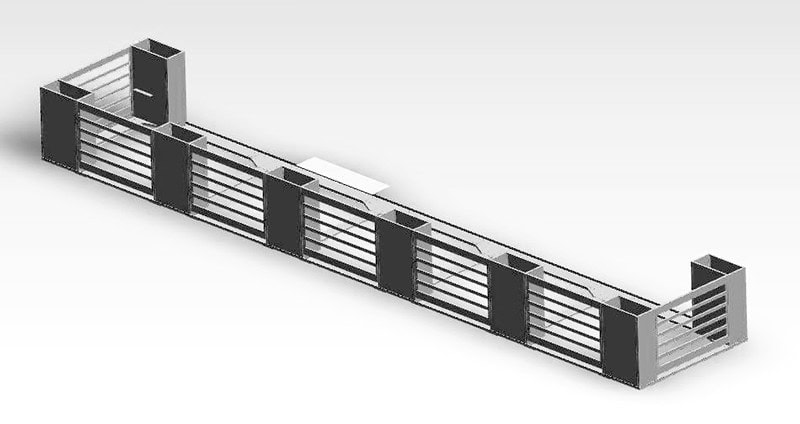

Perimeter Components

The perimeter structure has five main components made of galvanized steel:
Perimeter beams in 24″, 36″ and 48″ lengths – Yellow

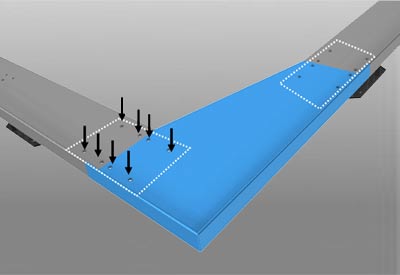

Corner profiles – Blue

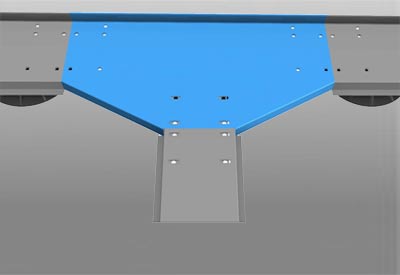

Perimeter connecting profiles – Green

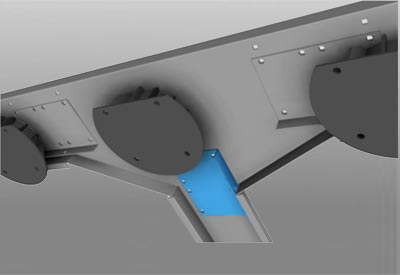

Internal beams – White

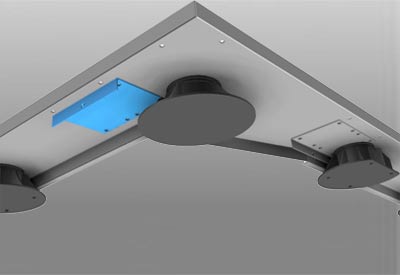

Connecting links – Red

Using connecting links, the perimeter beams and corners are bolted together to form the StreetDeck outer perimeter.

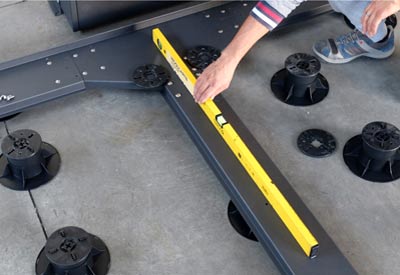

Pedestals positioned every 24″ can then be secured to the underside of the perimeter and vertically adjusted to raise and level the deck frame.

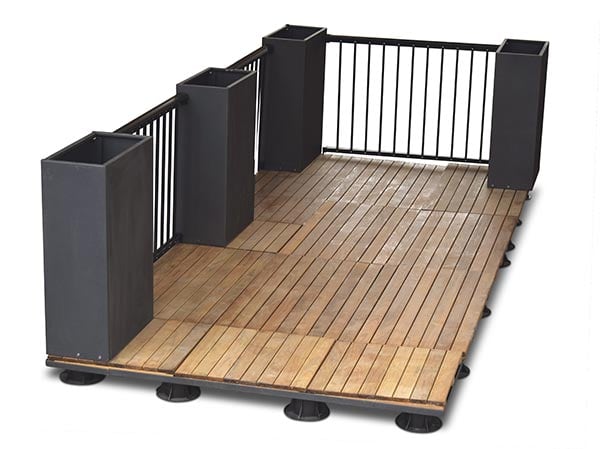

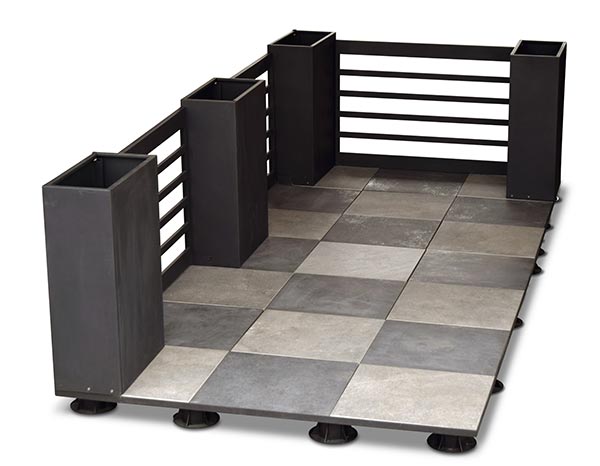

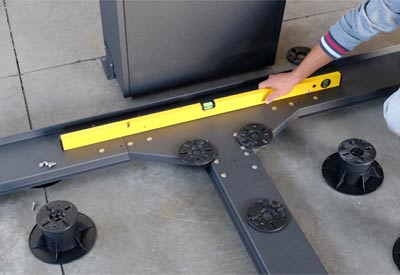

Cross beams are recommended to help square and structurally support the deck. Internal corners connected by cross beams are required when StreetDeck’s optional kit planters are installed.
